DOUBLE ROW X-ROLLER, UNGEARED
Double row crossed roller slewing rings offer higher radial and moment load capabilities than a similar sized ball bearing.
This makes them ideal for applications such as the non drive end of large winches or heavy duty turnover jigs in which the dominant load is radial in nature.
Similar to the ROLLIX 18 Series
Should you need PDF drawings, load curves, CAD or STP files that are not yet uploaded to the site please e-mail
info@qcbslewingrings.com and we will send them to you quickly!

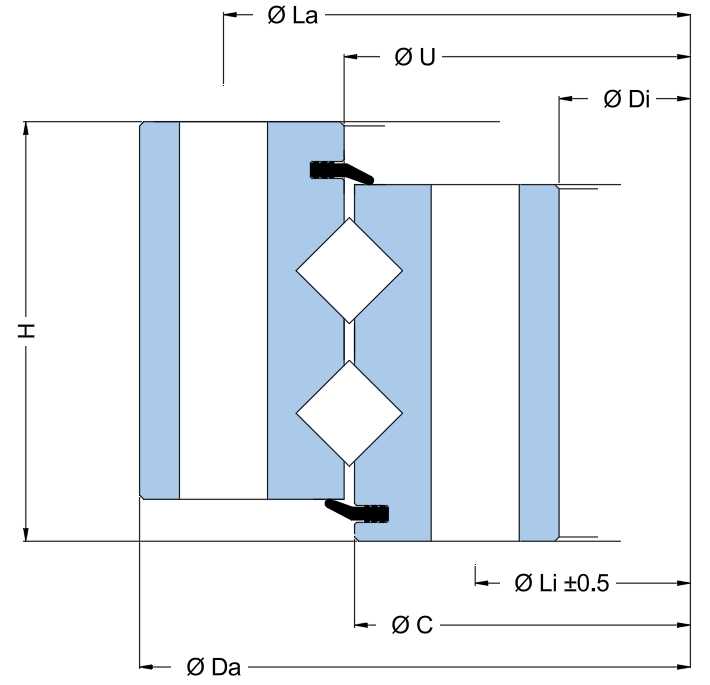

Series dimensions
(Dimensions and weights are illustrative. QCB reserves the right to modify any specification in our quest for continuous product improvement)
Outline dimensions Outer holes Inner holes Weight
QCB reference Da Di H La na Li ni
mm mm mm mm mm kg
SUN 1204 2X28 01 AA LM 1204 897 139 1141 48 959 48-2 447
SUN 1688 2X32 01 AA LM 1688 1317 150 1606 60 1394 60-2 841
SUN 2200 2X36 01 AA LM 2200 1800 170 2120 72 1880 72-2 1377
SUN 2710 2X40 01 AA LM 2710 2290 200 2625 102 2375 102-2 2121
SUN 3230 2X45 01 AA LM 3230 2775 215 3140 90 2860 90-2 3440
Interchange information
(This series of slewing rings is usually freely interchangeable with other brands – some specific application examples will exist)
QCB reference ROLLIX
SUN 1204 2X28 01 AA LM 18 1050 00
SUN 1688 2X32 01 AA LM 18 1500 00
SUN 2200 2X36 01 AA LM 18 2000 00
SUN 2710 2X40 01 AA LM 18 2500 00
SUN 3230 2X45 01 AA LM 18 3000 00
The QCB range of double row roller series is not limited to these sizes (we don’t want to publish all our secrets!). For example, bolt p[arameters can be modified to suit.
If you don’t see what you are looking for feel free to contact us to discuss your specific requirements.
