WGWEAL ALUMINIUM SERIES
SLEWING DRIVES

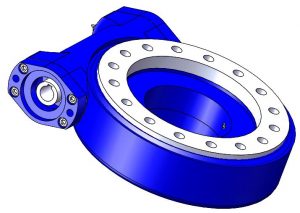

- The WGWEAL ALUMINIUM Series comprises a slewing ring with a true worm gear mounted in an aluminium casing with an hour-glass shaped worm shaft mounted on a common platform.
- The advantage of this series is the reduced overall mass which makes them ideal for light duty cranes, mobile platforms and robotics applications.
The range will be expanded in time.
Should you need PDF drawings, load curves, CAD or STP files that are not yet uploaded to the site please e-mail
info@qcbslewingrings.com and we will send them to you quickly!
Series dimensions
Click the download icons below to view our detailed product page with Cad print, Load curve, dxf and stp files.
| Outline dimensions | Outer holes | Inner holes | Bolt size | Gear ratio | Output torque | Accuracy | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QCB reference | A | B | Di | E | H1 | La | na | Li | ni | KNm | deg | |||
| mm | mm | mm | mm | mm | mm | mm | kg | |||||||
| WGWEAL 9 61 25 H R | 240 | 173.5 | 145 | 320 | 94 | 270 | 16 | 175 | 16-1 | M16 | 61:1 | 8 | <0.15 | 30 |
| WGWEAL 14 86 25 H R | 302.5 | 237.5 | 265 | 380 | 94 | 390 | 18 | 295 | 21-1 | M16 | 86:1 | 10.8 | <0.1 | 42 |
| WGWEAL 15 76 25 H R | 319 | 255 | 300 | 425 | 94 | 420 | 24 | 330 | 24 | M16 | 76:1 | 12 | <0.1 | 60 |
