SIG Double x-roller Series
SIG 2-Roller Series
DOUBLE ROW X-ROLLER, INTERNAL GEAR
Double row crossed roller, internally geared slewing rings offer higher radial and moment load capabilities than a similar sized ball bearing.
This makes them ideal for applications such as winches or heavy duty turnover jigs in which the dominant load is radial in nature.
The addition of an internal gear facilitates the transmission of power.
Should you need PDF drawings, load curves, CAD or STP files that are not yet uploaded to the site please e-mail
info@qcbslewingrings.com and we will send them to you quickly!

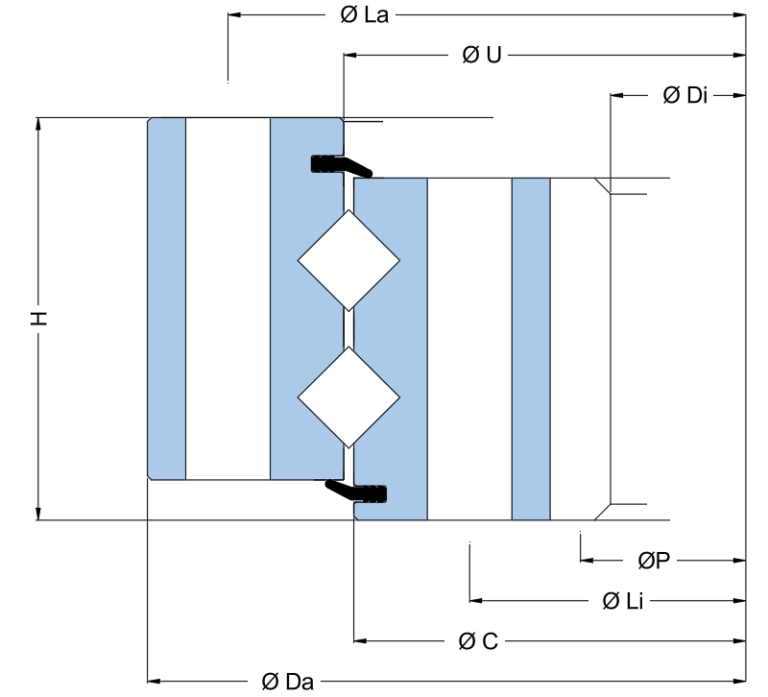

Series dimensions
(Dimensions and weights are illustrative. QCB reserves the right to modify any specification in our quest for continuous product improvement)
Outline dimensions Outer holes Inner holes 20 Deg stub gear Weight
QCB reference Da Di H La na Li ni P M z Fz Max
mm mm mm mm mm mm KN kg
SIG 1204 2X28 01 AA LM 1204 852 139 1141 48 959 48-2 860 10 86 189 477
SIG 1688 2X32 01 AA LM 1688 1249 150 1606 60 1394 60-2 1260 14 90 345 925
SIG 2200 2X36 01 AA LM 2200 1731 170 2120 72 1880 72-2 1744 16 109 416 1505
SIG 2710 2X40 01 AA LM 2710 2199 200 2625 102 2375 102-2 2214 18 123 525 2365
SIG 3230 2X45 01 AA LM 3230 2686 215 3140 90 2860 90-2 2700 18 150 604 3413
Interchange information
(This series of slewing rings is usually freely interchangeable with other brands – some specific application examples will exist)
QCB reference ROLLIX
SIG 1204 2X28 01 AA LM 17 1050 00
SIG 1668 2X32 01 AA LM 17 1500 00
SIG 2200 2X36 01 AA LM 17 2000 00
SIG 2710 2X40 01 AA LM 17 2500 00
SIG 3230 2X45 01 AA LM 17 3000 00
The QCB range of internally geared double row roller series is not limited to these sizes (we don’t want to publish all our secrets!). For example, gear limitations can be modified with higher modules or wider gear faces.
If you don’t see what you are looking for feel free to contact us to discuss your specific requirements.
