SEG Double X-roller Series
SEG 2-Roller Series

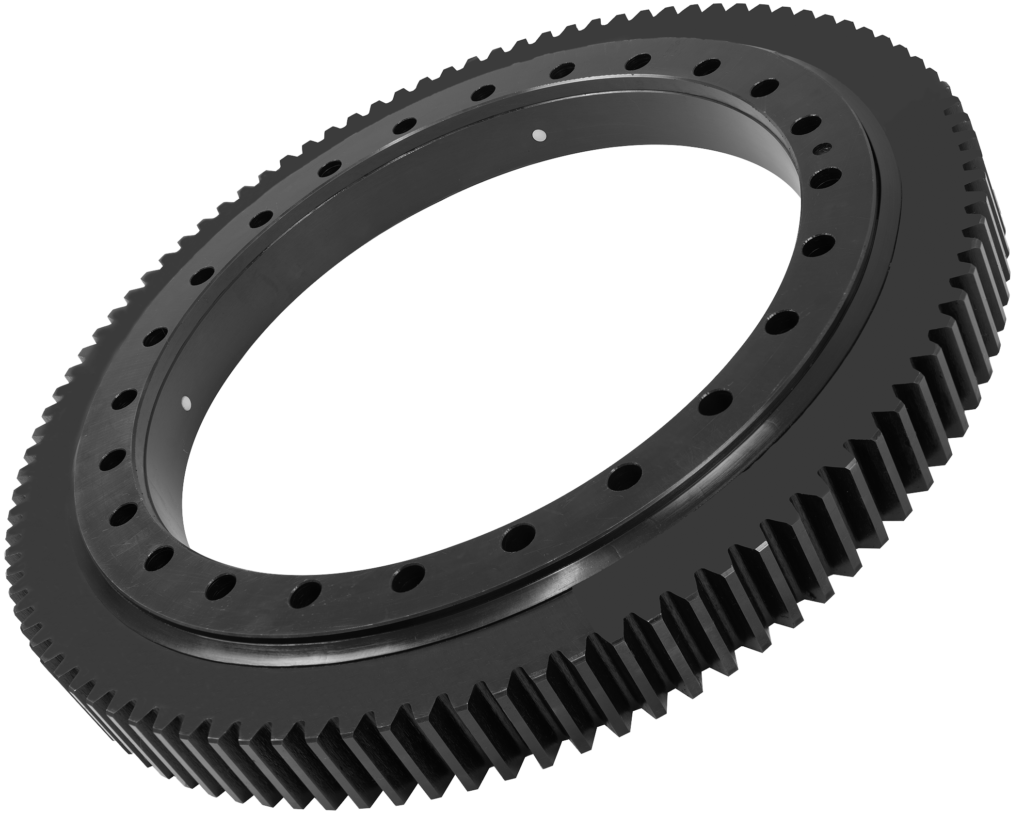

DOUBLE ROW X-ROLLER, EXTERNAL GEAR
Double row crossed roller, externally geared slewing rings offer higher radial and moment load capabilities than a similar sized ball bearing.
This makes them ideal for applications such as winches or heavy duty turnover jigs in which the dominant load is radial in nature.
The addition of an external gear facilitates the transmission of power.
Should you need PDF drawings, load curves, CAD or STP files that are not yet uploaded to the site please e-mail
info@qcbslewingrings.com and we will send them to you quickly!

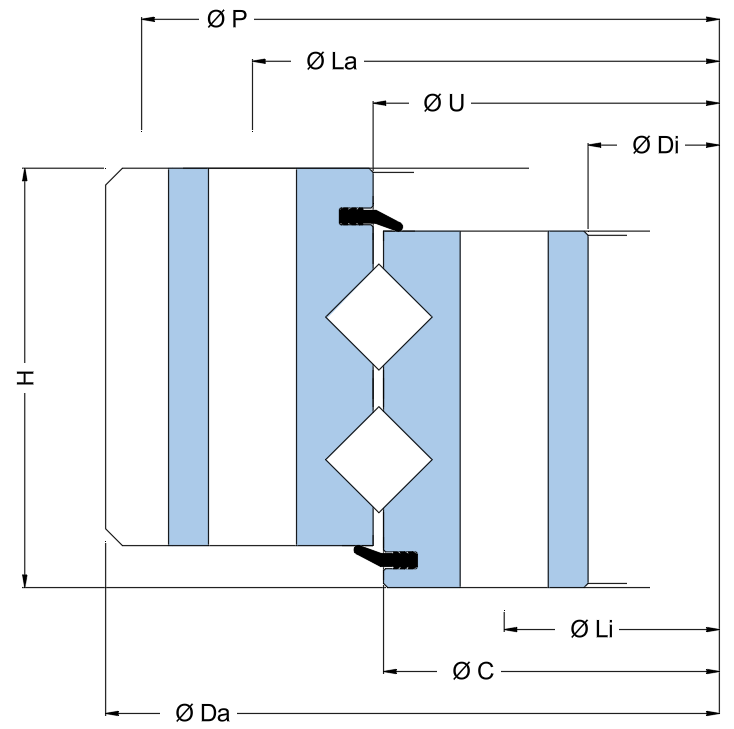

Series dimensions
(Dimensions and weights are illustrative. QCB reserves the right to modify any specification in our quest for continuous product improvement)
Outline dimensions Outer holes Inner holes 20 Deg stub gear Weight
QCB reference Da Di H La na Li ni P M z Fz Max
mm mm mm mm mm mm KN kg
SEG 1258 2X28 01 AA LM 1258 897 139 1141 48 959 48 1224 12 102 208 492
SEG 1747 2X32 01 AA LM 1747 1317 150 1606 60 1394 60 1708 14 122 316 929
SEG 2269 2X36 01 AA LM 2269 1800 170 2120 72 1880 72 2224 16 139 361 1511
SEG 2786 2X40 01 AA LM 2786 2290 200 2625 102 2375 102 2736 18 152 516 2366
SEG 3316 2X45 01 AA LM 3316 2775 215 3140 90 2860 90 3260 20 163 608 3419
Interchange information
(This series of slewing rings is usually freely interchangeable with other brands – some specific application examples will exist)
QCB reference ROLLIX
SEG 1258 2X28 01 AA LM 16 1050 00
SEG 1747 2X32 01 AA LM 16 1500 00
SEG 2269 2X36 01 AA LM 16 2000 00
SEG 2786 2X40 01 AA LM 16 2500 00
SEG 3316 2X45 01 AA LM 16 3000 00
The QCB range of externally geared double row roller series is not limited to these sizes (we don’t want to publish all our secrets!). For example, gear limitations can be modified with higher modules or wider gear faces.
If you don’t see what you are looking for feel free to contact us to discuss your specific requirements.
