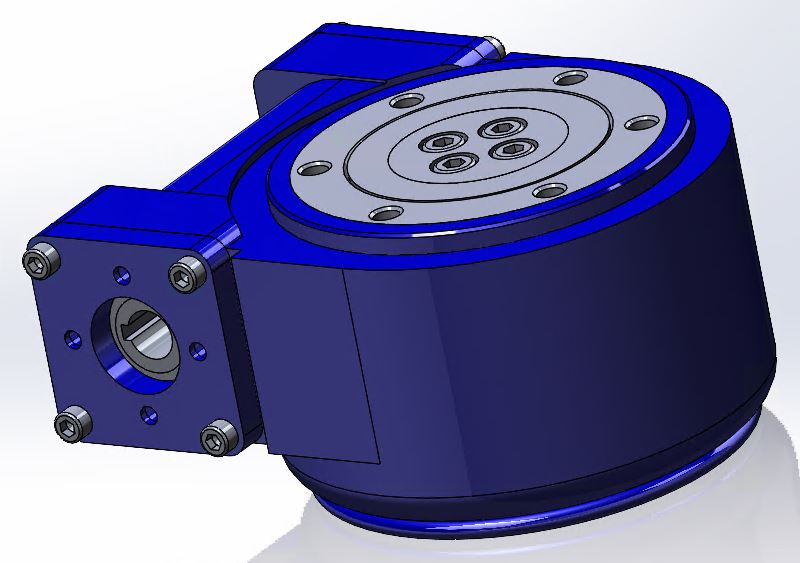

WGSE 3C 62 16 R and WGSE 3C 16 R##5
The standard WGSE 3C has a 4-bolt motor mount, but the #5 version has upgraded internals and a 3-bolt motor mount suitable for an ADAN AMM50P motor.
Available Downloads:
| Outline dimensions | Outer holes | Inner holes | Bolt size | Gear ratio | Output torque | Accuracy | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QCB reference | A | B | C | Di | E | H1 | La | na | Li | ni | KNm | deg | |||
| mm | mm | mm | mm | mm | mm | mm | mm | kg | |||||||
| WGSE 3C 62 16 R | 114 | 80 | 157 | - | 160.8 | 98 | 100 | 6 | 100 | 6 | M10 | 62:1 | 0.4 | <0.2 | 12 |
