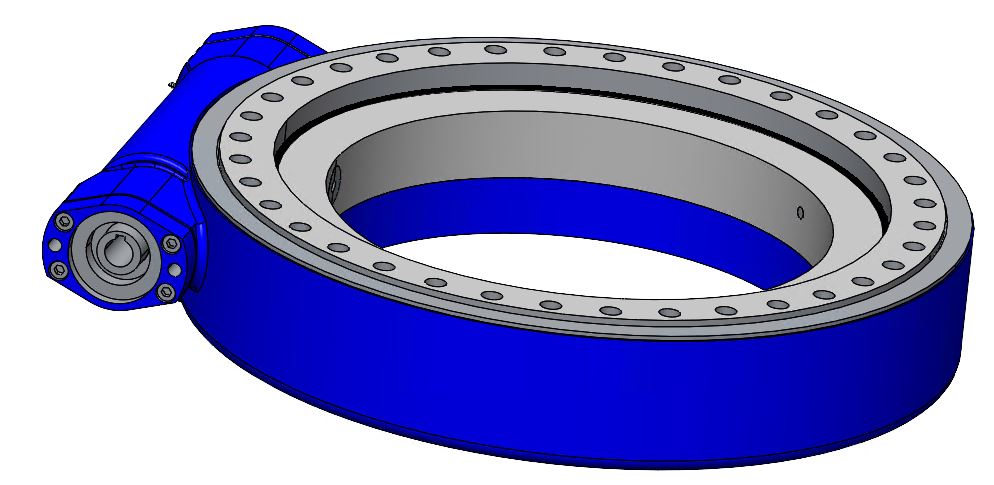

WGSE 21 125 25 H R
Slew drive with hour-glass worm shaft and enclosed worm gear
Available Downloads:
| Outline dimensions | Outer holes | Inner holes | Bolt size | Gear ratio | Output torque | Accuracy | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QCB reference | A | B | C | Di | E | H1 | La | na | Li | ni | KNm | deg | |||
| mm | mm | mm | mm | mm | mm | mm | mm | kg | |||||||
| WGSE 21 125 25 H R | 403 | 339 | 469 | 432 | 462 | 137 | 584 | 36 | 467 | 36-1 | M20 | 125:1 | 15 | <0.15 | 158 |
